Imagine this: A plane, train, or any vehicle carrying liquids, suddenly experiencing violent, unpredictable movements within its tanks. Sounds dangerous, right? Well, researchers are diving deep into this very issue, and their findings are crucial for our safety. A team led by Francisco Monteiro, Tommaso De Maria, and Samuel Ahizi, from the von Karman Institute for Fluid Dynamics and Universidad Carlos III de Madrid, has been studying 'sloshing' – the liquid's movement inside partially filled tanks when the vehicle accelerates vertically. Their goal? To predict and prevent the potentially catastrophic effects of this phenomenon. But here's where it gets controversial... their focus is on a particularly tricky scenario where the tank's motion triggers 'resonant sloshing,' which can lead to structural damage and instability. They've developed a novel method to foresee these risks. They combined high-speed video analysis with advanced data processing to create detailed 'regime maps.' These maps classify different sloshing patterns based on how full the tank is, offering a valuable tool for designing and operating vehicles safely. Ramon Abarca, Giuseppe C. A. Caridi, and Miguel A. Mendez also contributed to this research.**

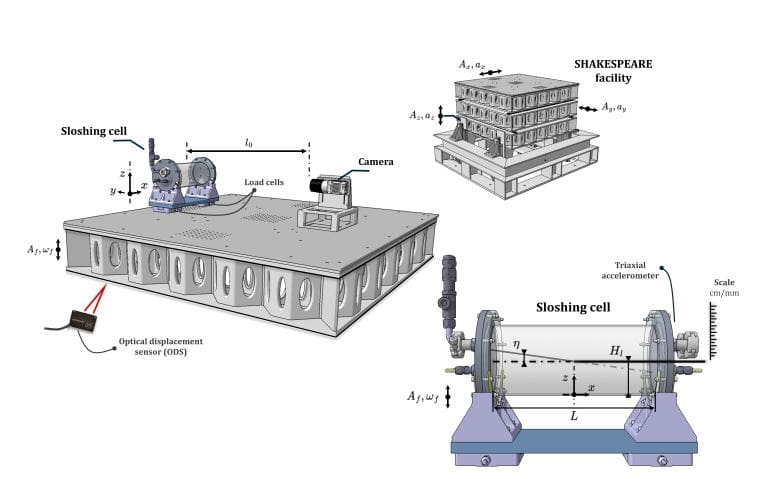

Why is this so important? Vertical sloshing in partially filled fuel tanks can seriously compromise a vehicle's stability and structural integrity. This is especially true when subjected to harmonic accelerations near twice the natural frequency of the sloshing motion. This can cause 'parametric resonance,' leading to large waves, surface disruption, and severe mixing within the tank. The research addresses a critical gap in our understanding of sloshing under vertical acceleration, a significant concern in aviation, where fuel tanks face low-frequency vibrations from turbulence and control inputs. The team conducted experiments using a transparent cylindrical tank, allowing them to observe the fluid behavior in detail. And this is the part most people miss... Their approach avoids complex interface tracking by using high-speed video recordings and combining prototype-based data labeling with advanced data processing techniques.
So, what did they discover? This innovative method allowed them to create a dimensionless regime map across three different fill ratios, examining liquid fill levels ranging from 0.40 to 0.67 relative to the tank diameter. The resulting map distinguishes between stable waves, longitudinal and transverse mode shapes, and regimes where different modes compete. The team systematically varied the dimensionless vertical acceleration from -0.94 to 0.90, the dimensionless displacement amplitude from 0.02 to 0.50, and the forcing frequency relative to twice the lowest natural frequency from -1.20 to 0.90. They collected data from 61 to 73 test points for each fill ratio across the tested conditions. This regime map provides a predictive tool for assessing sloshing-induced loads, supporting the structural and operational optimization of fuel systems. It's a major step forward in mitigating risks associated with parametric resonance.
In a nutshell: This research introduces a new data-driven method for identifying distinct regimes of liquid sloshing within partially filled cylindrical tanks. By using high-speed video analysis and advanced data processing techniques, scientists have successfully mapped out different sloshing behaviors without relying on complex interface tracking. The team developed a method combining prototype-based data labeling with multiscale proper orthogonal decomposition and automatic kernel-based classification. The resulting regime map distinguishes between stable sloshing, longitudinal and transverse mode shapes, and conditions where multiple modes compete. Interestingly, the experimentally determined natural frequencies of the tank were found to be significantly lower than those predicted by existing theoretical models for flat-ended cylinders, highlighting the importance of considering the tank’s geometry. This map is a valuable tool for optimizing the structural design and operational parameters of fuel tanks.
What do you think? Does this research change how you view the safety of vehicles? Do you think there are other factors that should be considered when designing fuel tanks? Share your thoughts in the comments below!
